A compact programmable reflow oven for prototypes, repair work, engineering labs and small-batch SMT production.

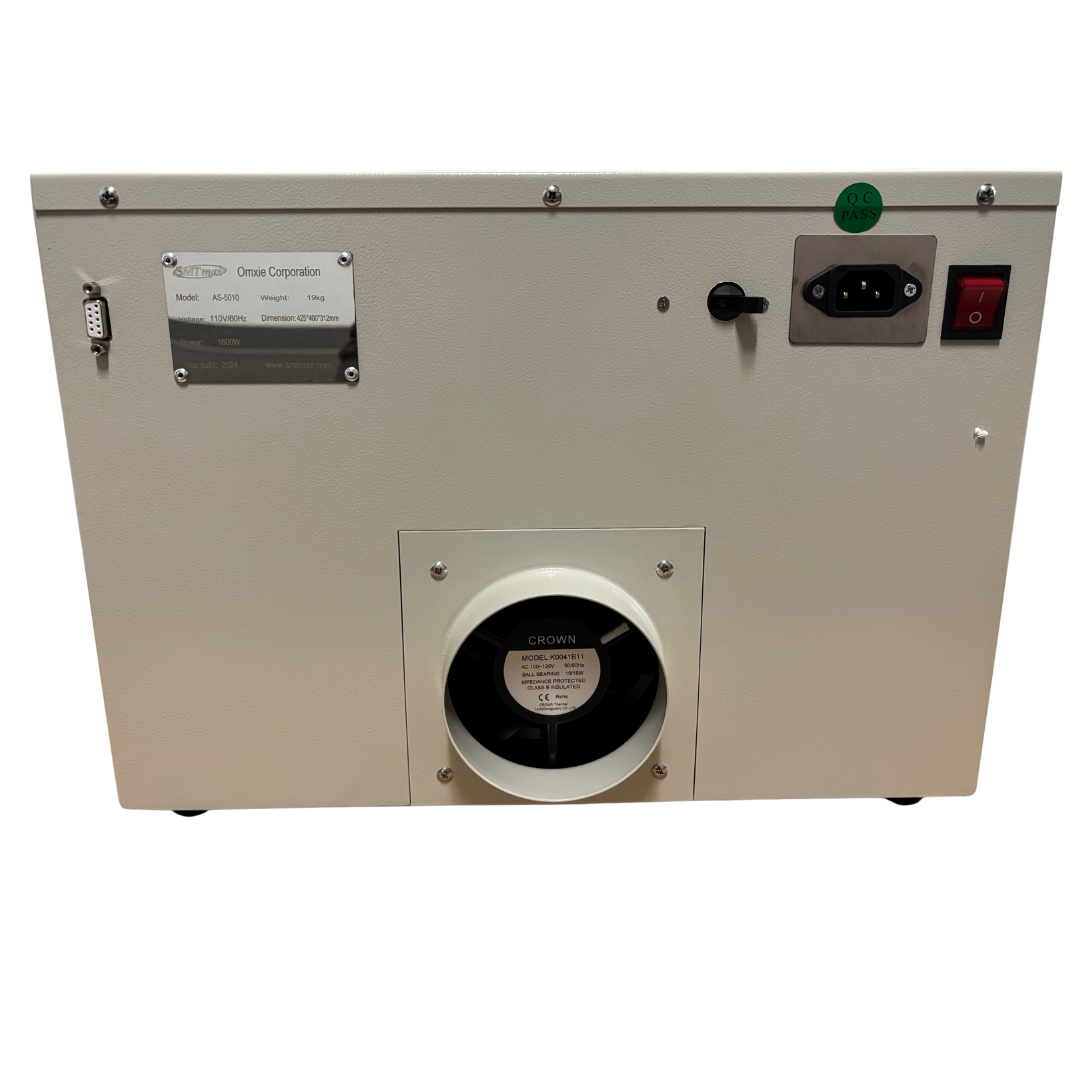

Available in 110 V, with 220 V configuration available by order. The AS-5010 includes computer communication capability through its RS-232 connection.

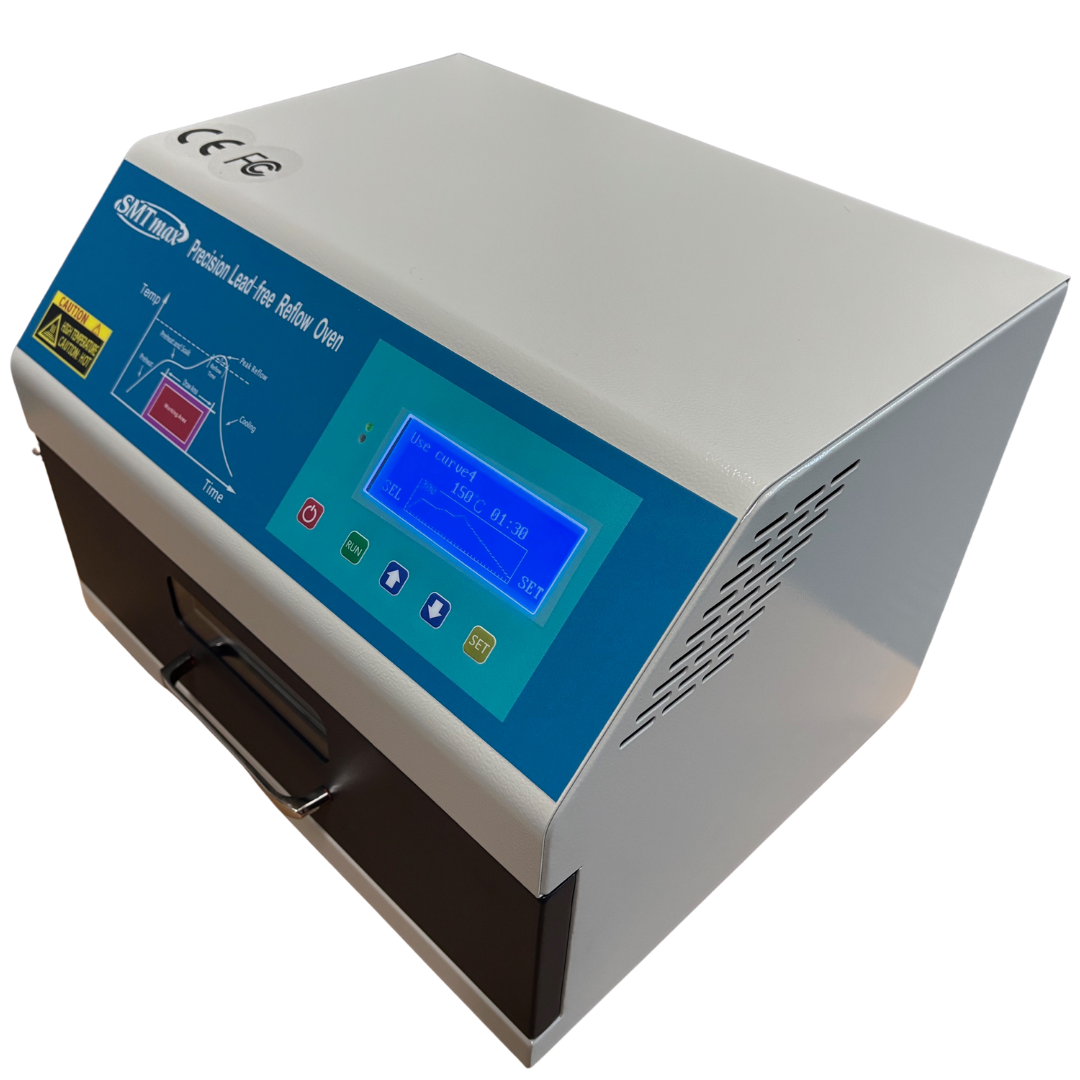

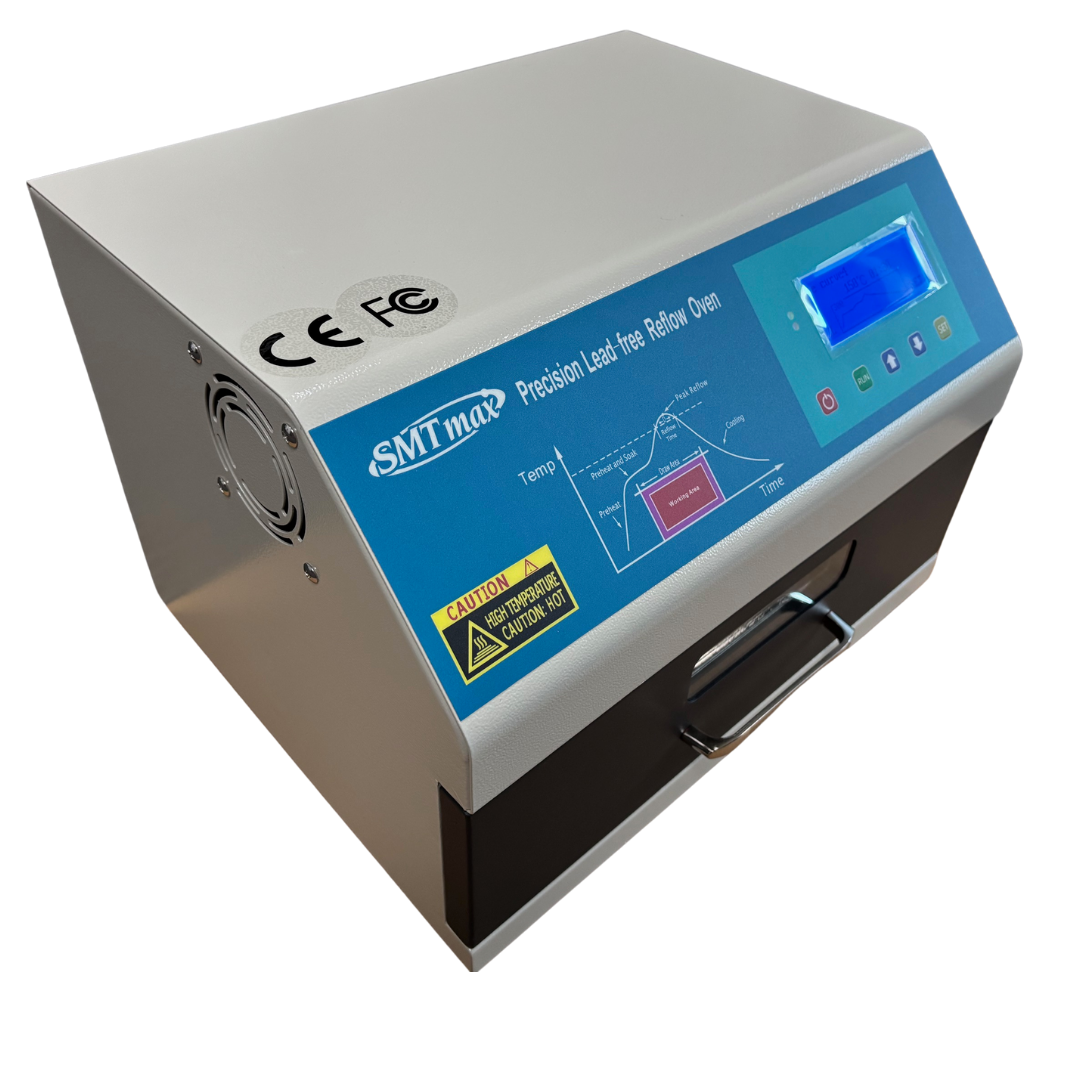

The AS-5010 combines infrared heating with internal hot-air circulation to provide a compact reflow solution for leaded and lead-free solder paste. Its internal controller automatically runs programmed temperature profiles while the LCD displays real-time temperature information.

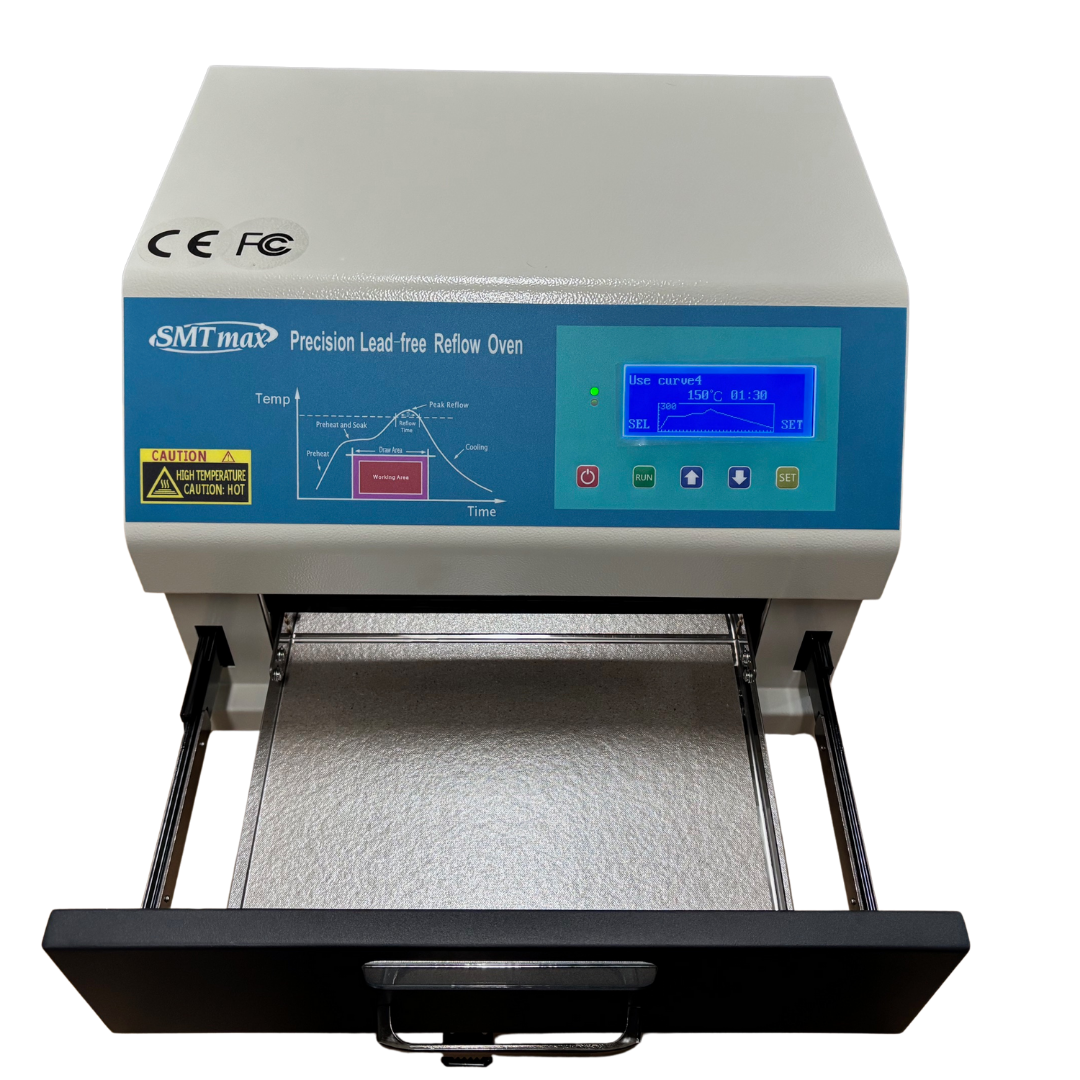

Preset soldering modes cover common applications, and custom profiles can be created for different solder pastes, PCB assemblies and repair processes. The drawer-style chamber keeps the system compact while providing a practical working area for small boards.
This section is ready for your future AS-5010 YouTube video. It can show customers how the drawer loads, how a profile is selected, and how the oven runs through a soldering cycle.
| System type | Tabletop batch reflow oven |
|---|---|
| Heating method | Infrared radiation heating + hot-air circulation |
| Working area | 250 × 200 mm |
| Maximum output power | 1,600 W |
| Voltage | 110 V AC standard; 220 V option available |
| Frequency | 60 Hz on 110 V version |
| Preheat range | 70–150°C, programmable up to 5 minutes |
| Soak range | Up to 250°C, programmable up to 5 minutes |
| Reflow range | Up to 300°C, programmable up to 30 seconds |
| Profile stages | Preheat, soak, reflow, heat keeping and cooling |
| Communication | RS-232 computer connection |
| Approx. dimensions | 425 × 400 × 314 mm |
| Approx. weight | 19 kg |
Send us your PCB dimensions, solder paste information and production goals. We'll help confirm whether the AS-5010 is the right size for your process.
