Integrated bench-top system combining a 700W hot-air rework station, 60W soldering station and 300W screen-separating preheating plate with independent digital temperature controls.
The 702ESD places three common repair functions in one station, reducing bench space while providing separate controls for rework, soldering and preheating.

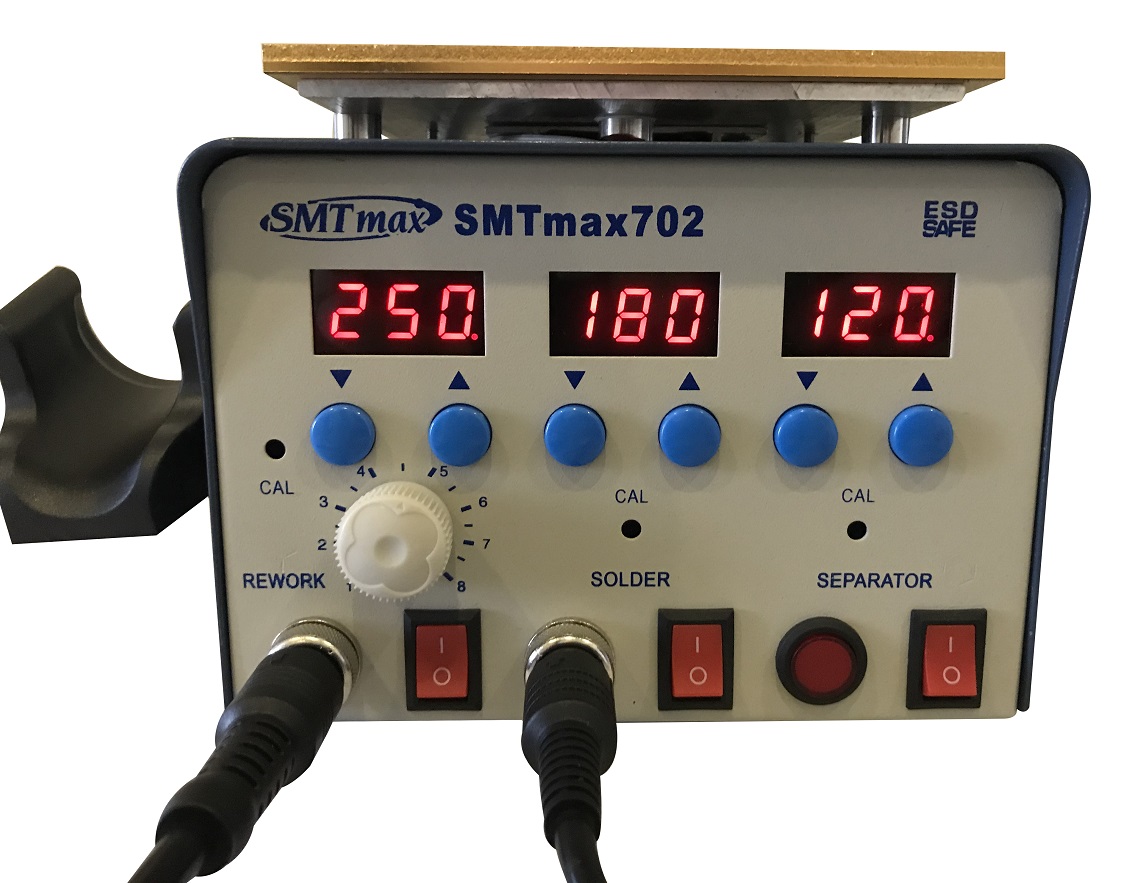

The SMTmax 702ESD combines hot-air rework, temperature-controlled soldering and a screen-separating preheating plate in one bench-top system. Each function has its own digital display and controls, allowing technicians to set the temperature needed for the specific repair process.
The hot-air and soldering sections operate from 100°C to 450°C, while the preheating plate operates from 60°C to 120°C. Microcomputer PID control with closed-loop sensors helps maintain stable working temperatures, and the hot-air system provides up to 120 L/min airflow.
When a product video becomes available, this section can be updated without changing the rest of the page.
| Model | 702ESD |
|---|---|
| Type | 3-in-1 hot air, soldering and screen-preheating rework station |
| Hot-air rework power | 700 W |
| Soldering station power | 60 W |
| Screen-preheating plate power | 300 W |
| Input voltage | 110 V AC |
| Hot-air temperature range | 100°C–450°C |
| Soldering temperature range | 100°C–450°C |
| Preheating plate temperature range | 60°C–120°C |
| Temperature stability | ±2°C |
| Hot-air flow rate | 120 L/min |
| Working environment | 0°C–40°C, relative humidity less than 80% |
| Storage environment | -20°C–80°C, relative humidity less than 80% |
| Temperature control | Microcomputer PID with closed-loop sensors |
Tell us the PCB or device work you are doing and we can help confirm whether the 702ESD is a good fit for your application.
